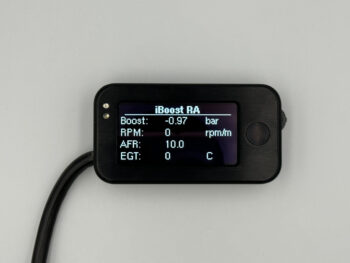

iBoost Boost Controller & Advance Gauge OBD Version

Operating Voltage 8-24v
Operating Temperature -10-40 Degrees Celsius

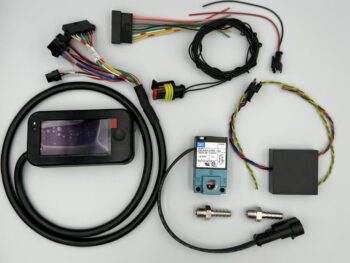

Includes
Boost controller

Map Sensor

Boost Solenoid Valve

Ready Wiring With Connectors

Reading Values Boost, Rpm, Speed, Gear, Egt, Afr, Duty
OBD Reading Values
Speed, Gear, Intake Temperature, Water Temperature, Oil Temperature,

Timing Ignition, Exhaust Gas Temperature, Air Fuel Ratio, Throttle Position,

Retardation cylinder 1, Retardation cylinder 2, Retardation cylinder 3, Retardation cylinder 4,

Misfire Counter, Short Fuel Trim, Long Fuel Trim, Fuel Pump Pressure, Engine Load

OBD Protocols
OBD, VAG(TP2.0), VAGOBD, KLINE, AEMNET, MSLABS,OPEL,FIAT,ECUMASTER

Boost Modes OFF, LOW MAP, HIGH MAP, RACE MAP
Boost Maps Boost Per Rpm, Boost Per Gear
Limits/Warnings
Boost Limit, Warning

Egt Limit, Warning

Afr Limit Target Per Rpm

OBD Limits/Warnings
Retardation, Misfire, Oil Temp, Water Temp, Fuel Trim

Extra Features
Start Boost For Faster Spool

Rpm Prepare and Shiftlight

Customizing 12v Output(Per Boost And Per Rpm)

External Input For Switching Boost Maps (eg. Remote Button)

External Input For Safe Mode(eg.Methanol Fail Safe Controller)

Save Peaks Values(Since Car Start And General)

Clear ECU DTC Errors
